LCD case for Prusa i3

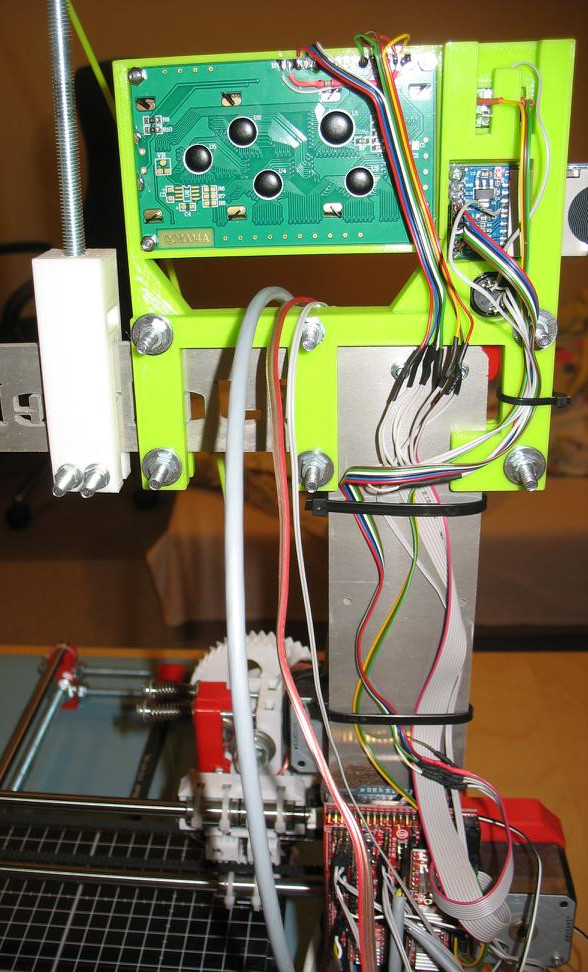

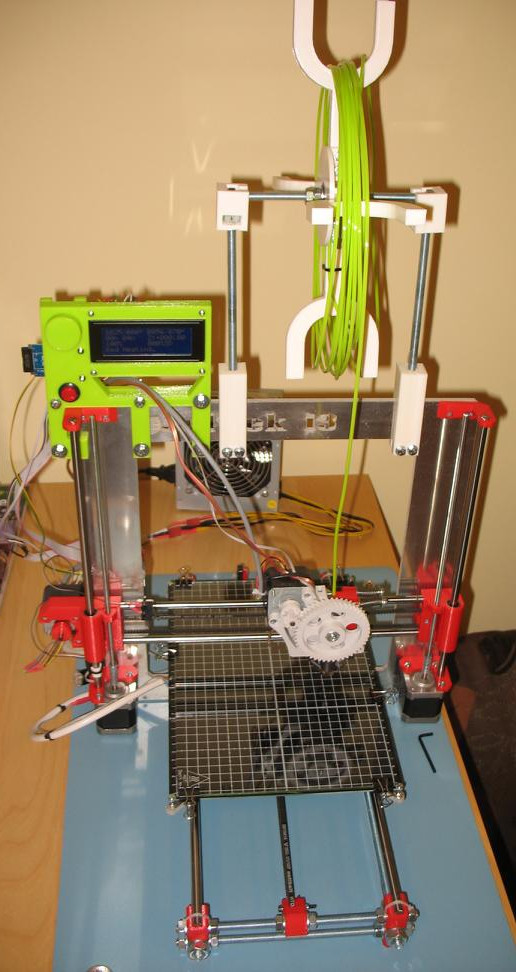

case for mounting electronics and LCD on Prusa i3. it uses rotary encoder with a button, a reset button, an LCD case and an SD-card holder. i used it with a panel max design, though pretty much anything can be used, as long as individual parts are compatible.

having electronics makes it possible to operate device without a computer. another benefit is that µC in question is a hard real-time system, opposite to a desktop PC – it makes printing more reliable.

design includes few nice features:

• cable-guide hole – extruder and hot-end cables will no longer hook to a random parts of a printer.

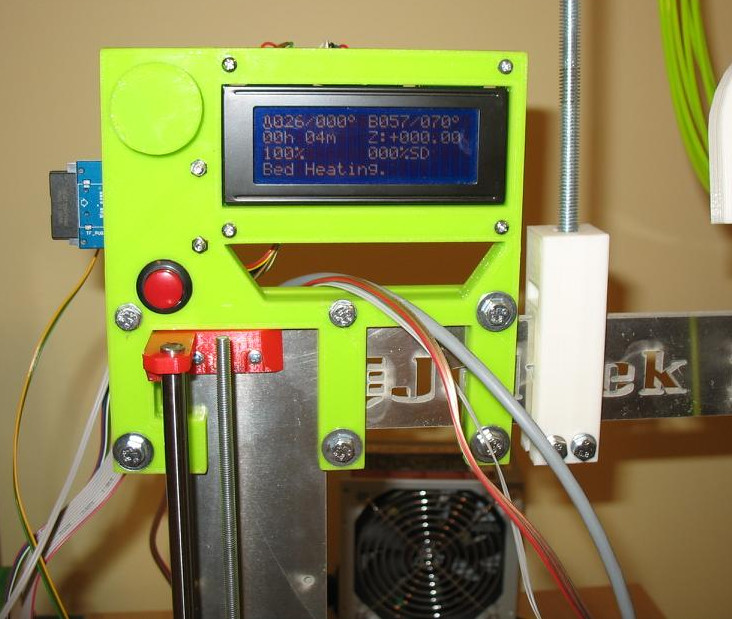

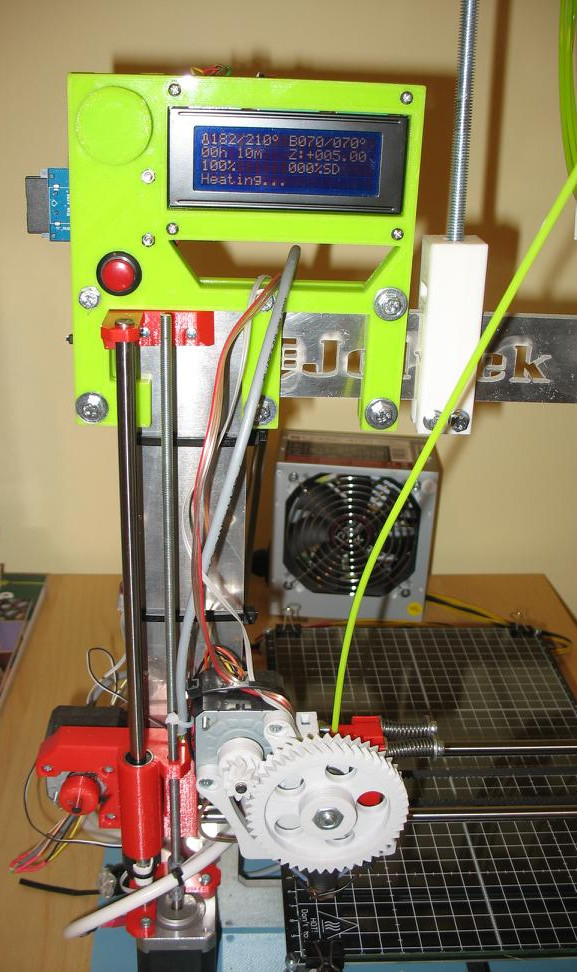

• on-top mounting – makes screen always visible. also does not require long cables and makes reading/operating convenient.
• to-frame mounting – does not enlarge printer on XY-surface, making it easier to co-locate with other devices.
• SD-card on a side – makes insertion/removal of a card easier.
• prints front-donw – this ensures a bottom flat surface is always the visible one, making it all look smooth.
